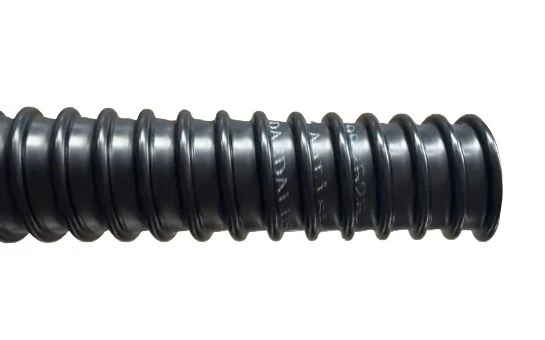

Hluav taws xob conductive hose

Hluav taws xob conductive hose
Paub meej:
Hose phab ntsa: Conductive polyurethane (PU)
Reinforcement: Coated steel hlau
Xa kev nug
Hauj lwm lawm
Xa kev nug

Hluav taws xob conductive hose



955 1.0mm Phab ntsa Thickness Smooth Bore TPU Conductive Hose



Khoom siv

  • Hose phab ntsa: Conductive polyurethane (PU)
  • Reinforcement: Coated steel hlau



Yam ntxwv

  • Smooth bore
  • Abrasion tsis kam
  • Permanent conductivity ntawm cov yeeb nkab phab ntsa
  • Deg tiv thaiv tsawg dua 104Ω / M
  • Ua raws li ISO 8031

Daim ntawv thov

  • Suction ntawm ntoo chips, sawdust
  • Suction ntawm fumes thiab abrasive ducst
  • Cov ntawv thov hauv ATEX tswj ib puag ncig
  • Suction systems hauv cermics thiab woodworking indusry

Qauv

  • Xim: Dub
  • Kub: - 40 / +90 degree



Tshooj Naj Npawb Sab hauv
Txoj kab uas hla		 Phab ntsa
Thickness
(Kev kam rau siab)		 Qhov hnyav Khoov
Radius		 Ua haujlwm
Siab		 Lub tshuab nqus tsev Coil
Ntev
mm mm (+/- 0.1) kg/m mm bar bar m
955-025-20 25 1.0 0.26 35 2.42 0.45 20
955-032-20 32 1.0 0.28 44 1.90 0.41 20
955-038-20 38 1.0 0.32 51 1.62 0.39 20
955-040-20 40 1.0 0.34 53 1.54 0.39 20
955-045-20 45 1.0 0.38 58 1.37 0.35 20
955-051-20 51 1.0 0.41 64 1.23 0.33 20
955-055-20 55 1.0 0.45 69 1.13 0.30 20
955-060-20 60 1.0 0.49 75 1.04 0.26 20
955-065-20 65 1.0 0.53 80 0.95 0.23 20
955-070-20 70 1.0 0.59 87 0.89 0.19 20
955-076-20 76 1.0 0.64 92 0.83 0.18 20
955-080-20 80 1.0 0.68 98 0.77 0.18 20
955-090-20 90 1.0 0.75 109 0.69 0.14 20
955-102-10 102 1.0 0.97 120 0.62 0.11 10
955-110-10 110 1.0 1.06 131 0.57 0.10 10
955-115-10 115 1.0 1.11 136 0.55 0.09 10
955-120-10 120 1.0 1.16 142 0.52 0.09 10
955-127-10 127 1.0 1.20 147 0.50 0.08 10
955-130-10 130 1.0 1.25 153 0.48 0.08 10
955-140-10 140 1.0 1.34 164 0.45 0.08 10
955-152-10 152 1.0 1.52 175 0.41 0.07 10
955-160-10 160 1.0 1.61 186 0.39 0.06 10
955-170-10 170 1.0 1.71 195 0.37 0.05 10
955-175-10 175 1.0 1.76 202 0.36 0.05 10
955-180-10 180 1.0 1.81 208 0.35 0.05 10
955-203-10 203 1.0 2.00 230 0.32 0.05 10
955-225-10 225 1.0 2.16 257 0.28 0.04 10
955-254-10 254 1.0 2.39 285 0.25 0.02 10
955-275-10 275 1.0 2.63 312 0.23 0.02 10
955-279-10 279 1.0 2.73 325 0.22 0.02 10
955-300-10 300 1.0 2.86 340 0.21 0.02 10
