Qhov cua hose

Qhov cua hose
Paub meej:
Phab ntsa yeeb nkab: Polyester polyurethane (ESTER PU)
Reinforcement: PU coated steel hlau
Xa kev nug
Hauj lwm lawm
Xa kev nug

Qhov cua hose

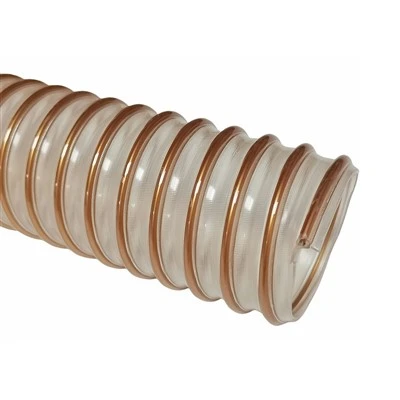

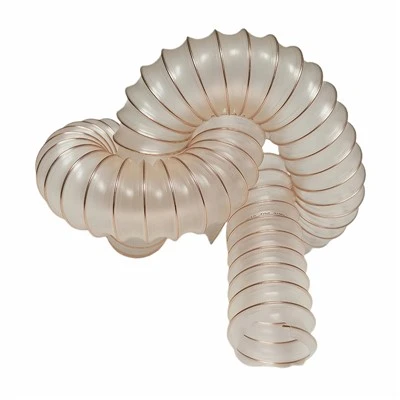

901Z 0.4mm Phab ntsa Thickness PU Hose Reinforced nrog Dub Xim PU Coated Hlau Hlau



Khoom siv

  • Phab ntsa yeeb nkab: Polyester polyurethane (ESTER PU)
  • Reinforcement: PU coated steel hlau



Yam ntxwv

  • Flexible thiab yooj yim khoov
  • Stretchable
  • Compressible (piv txwv li 1: 3.5)
  • Zoo abrasion resistant
  • Ozone resistant, laus resistant, ntxhia roj resistant
  • Phthalates dawb, halogen-dawb thiab cadmium dawb

Daim ntawv thov

  • Suction ntawm ntoo chips thiab crushed khoom hais
  • Extraction ntawm hmoov av thiab sawdust
  • Lub tshuab nqus tsev nqus thiab tso pa tawm
  • Qhov cua thiab cov plua plav

Qauv

  • Xim: Translucent hose phab ntsa, Dub xim ntxiv kauv (lwm xim muaj)
  • Kub: - 40 /+ 90℃, +125℃lub sij hawm luv luv
  • Txoj kev sib txuas: txoj cai tig kauv, choj clamp 991R



Tshooj Naj Npawb Sab hauv
Txoj kab uas hla		 Phab ntsa
Thickness		 Qhov hnyav Lub tshuab nqus tsev Khoov
Radius		 Ntim Yob
Ntev
mm mm g/m bar mm m3 m
901Z-038-10 38 0.40 160.00 0.04 20.00 0.01 10
901Z-040-10 40 0.40 165.00 0.04 22.00 0.01 10
901Z-045-10 45 0.40 175.00 0.04 23.00 0.01 10
901Z-051-10 51 0.40 195.00 0.04 25.00 0.01 10
901Z-060-10 60 0.40 240.00 0.04 30.00 0.01 10
901Z-065-10 65 0.40 250.00 0.04 32.00 0.01 10
901Z-070-10 70 0.40 360.00 0.04 35.00 0.01 10
901Z-076-10 76 0.40 390.00 0.04 38.00 0.01 10
901Z-080-10 80 0.40 410.00 0.04 40.00 0.01 10
901Z-090-10 90 0.40 450.00 0.04 45.00 0.02 10
901Z-102-10 102 0.40 510.00 0.03 50.00 0.02 10
901Z-110-10 110 0.40 560.00 0.03 55.00 0.03 10
901Z-115-10 115 0.40 580.00 0.03 55.00 0.03 10
901Z-120-10 120 0.40 610.00 0.03 60.00 0.03 10
901Z-125-10 125 0.40 640.00 0.03 64.00 0.04 10
901Z-130-10 130 0.40 660.00 0.02 65.00 0.04 10
901Z-140-10 140 0.40 710.00 0.02 70.000 0.05 10
901Z-152-10 152 0.40 760.00 0.02 75.000 0.05 10
901Z-160-10 160 0.45 880.00 0.02 80.00 0.07 10
901Z-170-10 170 0.45 910.00 0.02 85.00 0.07 10
901Z-180-10 180 0.45 990.00 0.02 90.00 0.08 10
901Z-203-10 203 0.45 1,100.00 0.01 100.00 0.10 10
901Z-220-10 220 0.45 1,200.00 0.01 110.000 0.12 10
901Z-228-10 228 0.45 1,250.00 0.01 114.000 0.13 10
901Z-254-10 254 0.50 1,450.00 0.01 140.000 0.19 10
901Z-279-10 279 0.50 1,450.00 0.01 140.00 0.19 10
901Z-280-10 280 0.50 1,450.00 0.01 140.00 0.19 10
901Z-305-10 305 0.50 1,610.00 0.01 170.00 0.22 10
901Z-320-10 320 0.50 1,790.00 0.01 175.00 0.29 10
901Z-356-10 356 0.50 1,890.00 0.01 180.00 0.32 10
901Z-406-10 406 0.50 2,070.00 0.01 200.00 0.38 10
901Z-500-10 500 0.50 2,600.00 0.01 230.00 0.40 10
