Khoom noj khoom haus qib Compressible Hose

Khoom noj khoom haus qib Compressible Hose
Paub meej:
Hose phab ntsa: Polyester polyurethane (ESTER PU)
Reinforcement: Copper plated steel hlau
Polyether polyurethane (Ether PU) khoom muaj rau xaiv
Xa kev nug
Hauj lwm lawm
Xa kev nug

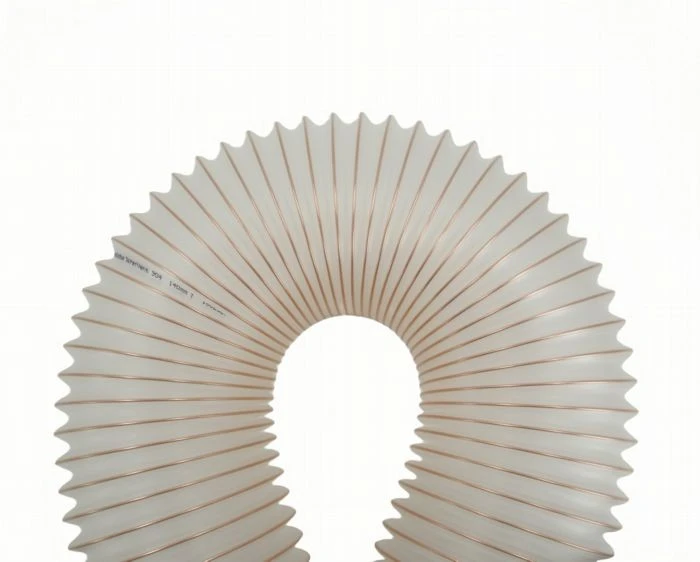

Khoom noj khoom haus qib compressible hose



904 Compressible 0.6mm Phab ntsa Thickness PU Hose Reinforced nrog Hlau Hlau



Khoom siv

  • Hose phab ntsa: Polyester polyurethane (ESTER PU)
  • Reinforcement: Copper plated steel hlau
  • Polyether polyurethane (Ether PU) khoom muaj rau xaiv



Yam ntxwv

  • Yooj yim heev thiab yooj yim rau khoov
  • Nthuav flexibly
  • Compressible (qhov sib piv 1: 4)
  • Zoo abrasion tsis kam
  • Ozone resistant, laus resistant, ntxhia roj resistant
  • Dawb los ntawm softener, halogen -dawb

Daim ntawv thov

  • Suction ntawm crushed khoom hais
  • Extract hmoov av thiab sawdust
  • Lub tshuab nqus tsev nqus thiab tso pa tawm
  • Qhov cua thiab cov plua plav
  • Dynamic Cheebtsam ntawm mechanical oscillating devices

Qauv

  • Xim: Translucent
  • Kub: -40 / +90℃C, +125℃hauv lub sijhawm luv luv
  • Txoj kev sib txuas: txoj cai tig kauv, choj clamp 991R



Tshooj Naj Npawb Sab hauv
Txoj kab uas hla
(Kev kam rau siab)		 Sab nraud
Txoj kab uas hla
(Kev kam rau siab)		 Phab ntsa
Thickness		 Qhov hnyav Lub tshuab nqus tsev Khoov
Radius		 Coil
Ntev		 Ntim
mm(+/- 0.5) mm(+/- 2) mm g/m bar mm m m³
904-025-10 25 33 0.40 140 0.20 30 10 0.004
904-030-10 30 38 0.40 160 0.20 30 10 0.006
904-032-10 32 40 0.40 170 0.20 30 10 0.006
904-038-10 38 46 0.40 175 0.20 30 10 0.005
904-040-10 40 48 0.40 185 0.20 32 10 0.005
904-051-10 51 61 0.40 230 0.20 40 10 0.007
904-060-10 60 70 0.40 265 0.17 50 10 0.010
904-065-10 65 75 0.40 285 0.17 56 10 0.011
904-070-10 70 80 0.43 375 0.17 60 10 0.013
904-076-10 76 86 0.43 405 0.17 65 10 0.015
904-080-10 80 90 0.43 420 0.16 65 10 0.016
904-090-10 90 100 0.43 470 0.16 75 10 0.022
904-102-10 102 113 0.53 530 0.13 85 10 0.028
904-110-10 110 121 0.53 570 0.12 90 10 0.032
904-115-10 115 126 0.53 595 0.11 95 10 0.035
904-120-10 120 131 0.53 620 0.10 100 10 0.037
904-127-10 127 138 0.63 760 0.10 105 10 0.045
904-130-10 130 141 0.63 775 0.08 105 10 0.047
904-140-10 140 151 0.63 840 0.08 115 10 0.054
904-152-10 152 163 0.63 900 0.08 125 10 0.063
904-160-10 160 171 0.63 945 0.07 130 10 0.069
904-170-10 170 181 0.63 1,105 0.06 140 10 0.075
904-180-10 180 191 0.63 1,210 0.05 150 10 0.087
904-203-10 203 214 0.63 1,345 0.04 165 10 0.106
904-220-10 220 231 0.63 1,525 0.04 185 10 0.142
904-254-10 254 265 0.65 1,845 0.04 210 10 0.174
904-279-10 279 290 0.65 2,025 0.04 230 10 0.209
904-305-10 305 317 0.65 2,205 0.03 250 10 0.248
904-356-10 356 368 0.65 2,570 0.03 300 10 -
904-406-10 406 418 0.75 3,150 0.03 350 5 -
904-450-10 450 462 0.75 4,160 0.02 400 5 -
904-500-10 500 512 0.75 5,400 0.01 450 5 -

Cim npe nrov: Khoom noj khoom haus qib compressible hose, Tuam Tshoj zaub mov qib compressible hose manufacturers, lwm tus neeg, Hoobkas
